API.VintageData.IO

This project is an ETL (Extract, Transform, Load) pipeline designed to process match results for Vintage tournaments on Magic Online (MTGO).

See GitHub Repository.


Process

  • Extract data from a publicly maintained Google Sheet.
  • Clean & Transform tournament results, matchups, and deck information.
  • Load structured data into a PostgreSQL database.
  • Deploy a public REST API for querying match results and event information.
  • Present data to users with a Power BI dashboard visualizing metagame trends, player leaderboards, and deck matchup statistics.

The ETL code is stored as Python scripts and scheduled to run weekly using cron on an EC2 instance. These scripts pull data from a public Google Sheet, clean and transform it, and then load it into a PostgreSQL database hosted on Amazon RDS.


Data Source

MTGO Vintage Metagame Data: Public Google Sheet with community-collated tournament results, matchups, and deck archetypes.


Architecture

This project is deployed in AWS using an EC2 instance and Amazon RDS (PostgreSQL) database.

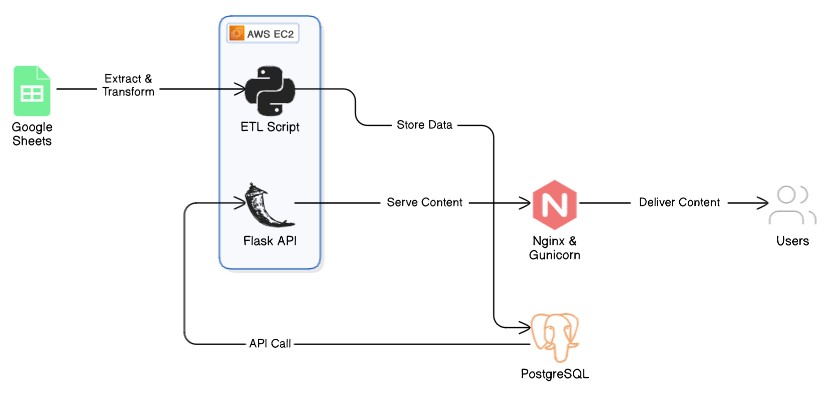

Architecture

Architecture Diagram


Database Schema

The data is loaded and stored in a PostgreSQL database with the following tables:

Table Name Description
EVENTS Captures individual tournament events.
EVENT_REJECTIONS Tracks rejected events and reason text.
MATCHES Stores match results, player deck IDs, and outcomes.
MATCH_REJECTIONS Tracks rejected matches and reason text.
EVENT_STANDINGS Returns the final standings and player ranks of an event.
RANK_REJECTIONS Tracks rejections event standings records and reason text.
VALID_DECKS Classification table storing valid deck archetypes.
VALID_EVENT_TYPES Classification table containing valid event type names.
LOAD_REPORTS Logs ETL process execution details.
API_LOGGING_STATS Logs API endpoint usage statistics.

See Data Dictionary for feature definitions.

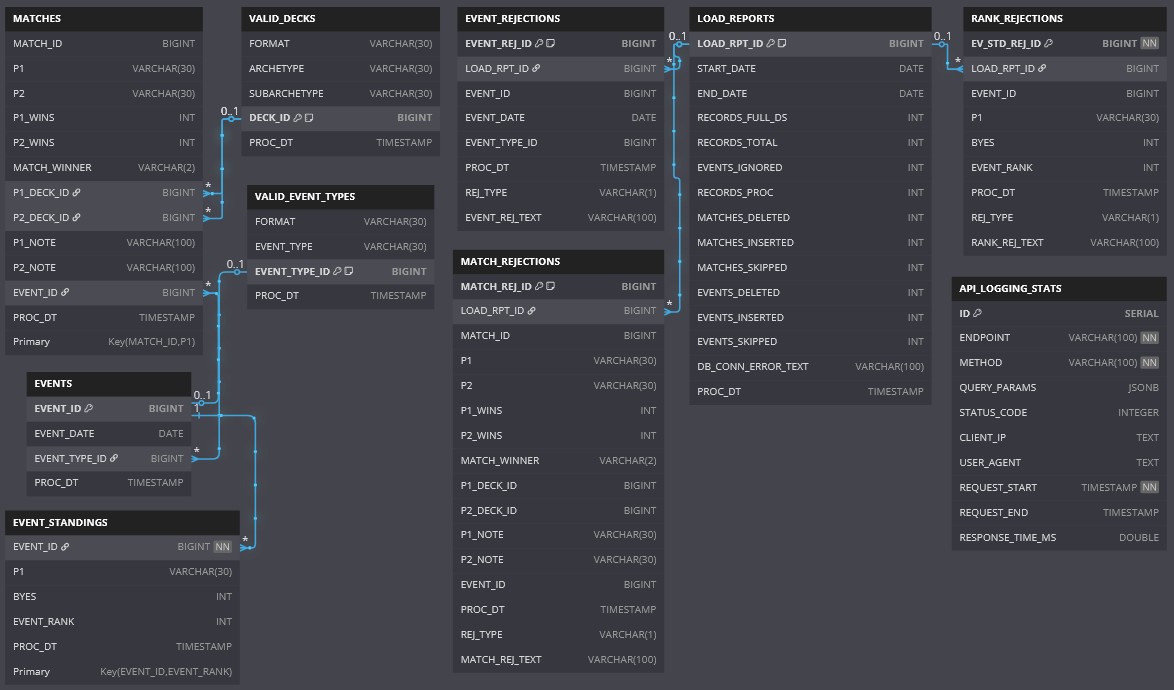

ERD

Entity-Relationship Diagram (ERD)


API Development

A REST API was developed using Flask and deployed using an EC2 instance, which is configured to serve requests through Nginx and Gunicorn. The API provides HTTP endpoints for querying processed match results and event data.

See API Documentation for API Endpoint usage instructions.


Dashboard

This Power BI dashboard provides insights into the online Vintage metagame using our processed data. It includes:

  • Overall Metagame Trends – High-level analysis of deck popularity and performance.
  • Event Explorer – Detailed view of individual tournament results.
  • Player Leaderboard – Rankings based on player performance across events.
  • Deck Matchup Heatmap – Visualization of win rates between different deck archetypes.

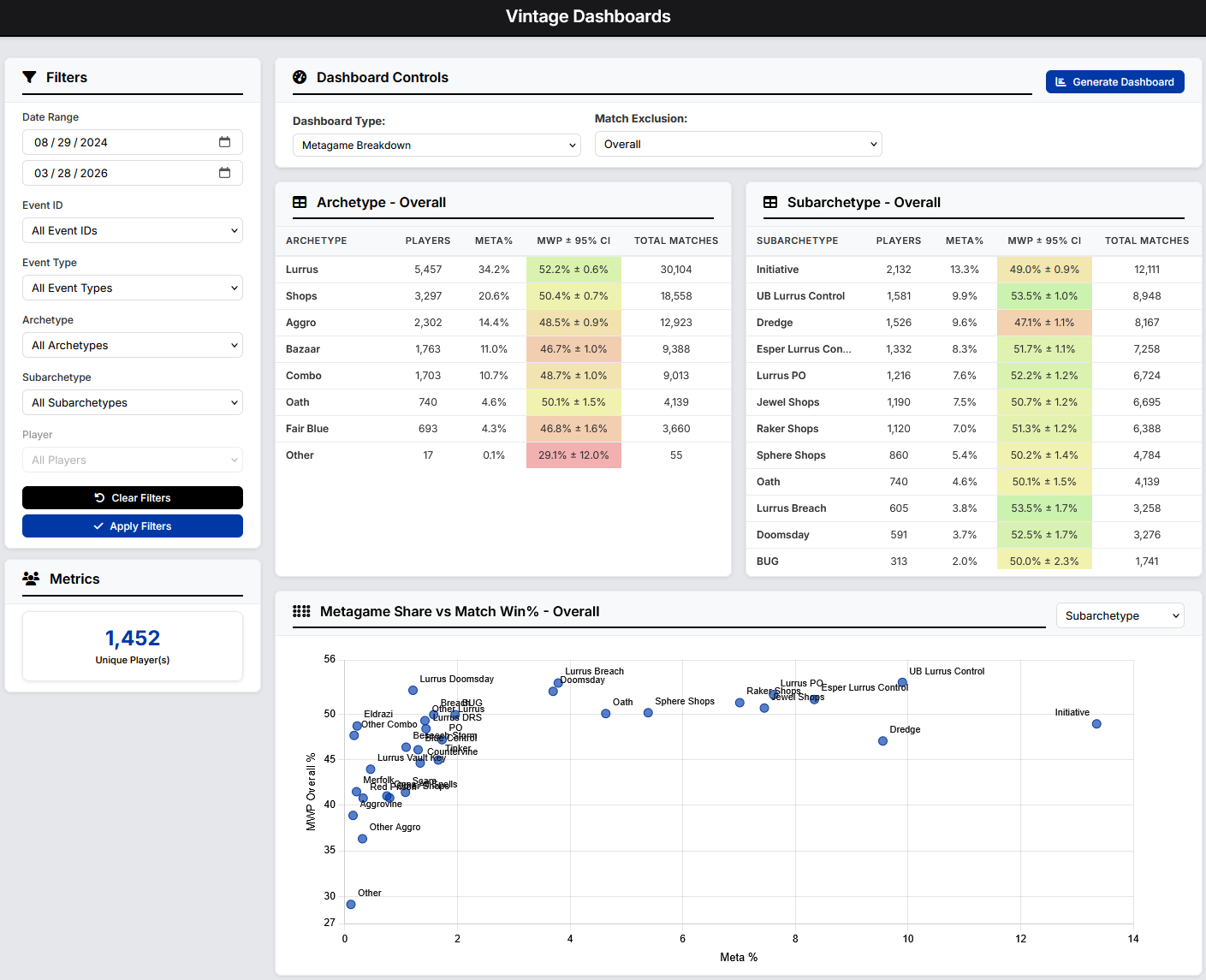

Power BI

Power BI Dashboard (Page 1 of 4): Overall Metagame Trends
